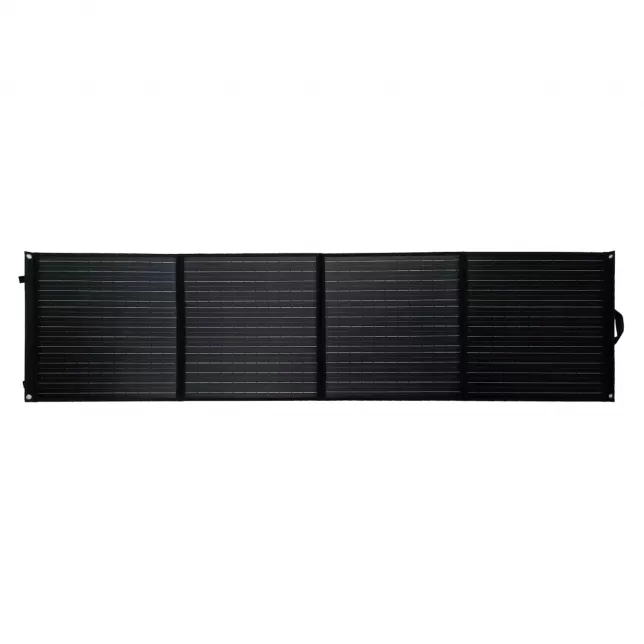

Portable Solar Panel 200W

Product Name

Foldable Solar Panel

Certificate

ISO，CE，ROHS

Product model

51W panel *4 folding

Product process

PET surface monocrystalline silicon solar panel + polyester waterproof cloth sewing

Material

Black 600D High weather resistance environmental

protection fabric

Product size（Folded)

540*510*70 ±3MM

Product size（UNFolded)

2110*540*35 ±3MM

Product weight

5.9KG

Output Ports

QC3.0  5v/3A 9V/2A 12V/1.5A (Max)

USB 5V/3.0A Max

Type-C 5v/3A 9V/3A 12V/3A 20V/2.25A(Max)

DC 19V 10.50A (Max)

MC4/Anderson/ DC7909/XT60

Peak power

200.00 Pm(W)

Power tolerance

±5(%)

Peak power voltage

19.00Vm(V)

Peak power current

10.5Im(A)

open circuit voltage

22.42Voc(V)

Short circuit current

11.37Isc(A)

Soar cell efficiency

22.50(%)

Power temperature coefficient

-0.43(%/℃)

Voltage

temperature coefficient

-0.33(%/℃)

Current

temperature coefficient

0.05(%/℃)

Operating temperature/humidity

-20～+70 (Relative humidity 10～80%)(℃)

International standard

STC.: AM 1.5,sunlight intensity 1000w/㎡,25℃

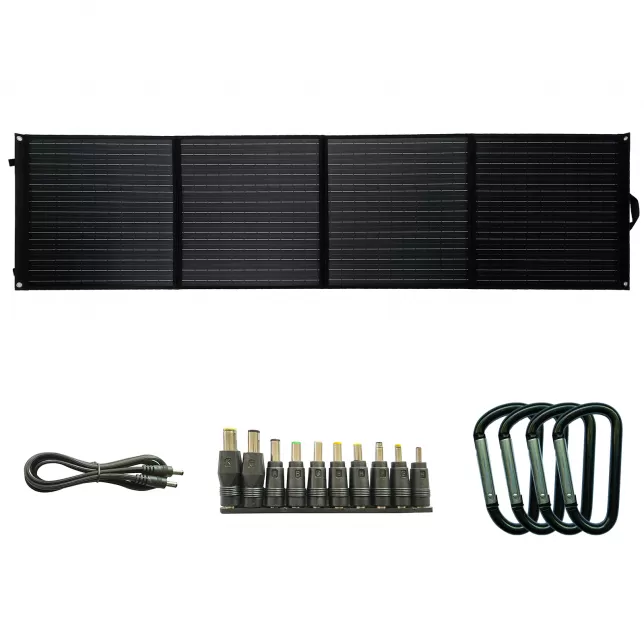

Packing Accessories

4pcs Carabiner

DC cable 1.5m long MC4/Anderson/ DC7909/XT60

Charging connector 10pcs

(5521 to:35135/4017/4817/5532/5517/5525/6330/6543/7450/7955)

User’s Manual
