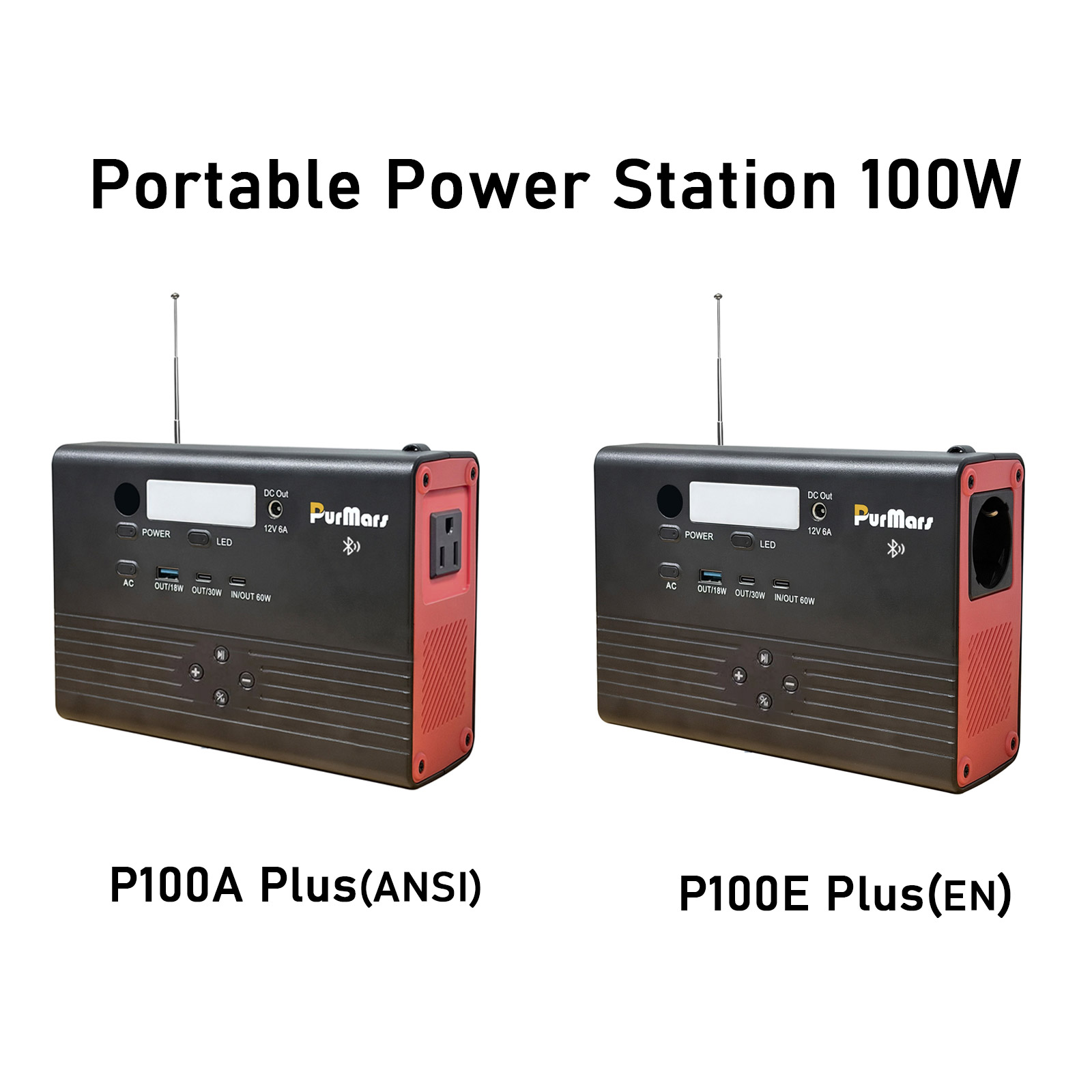

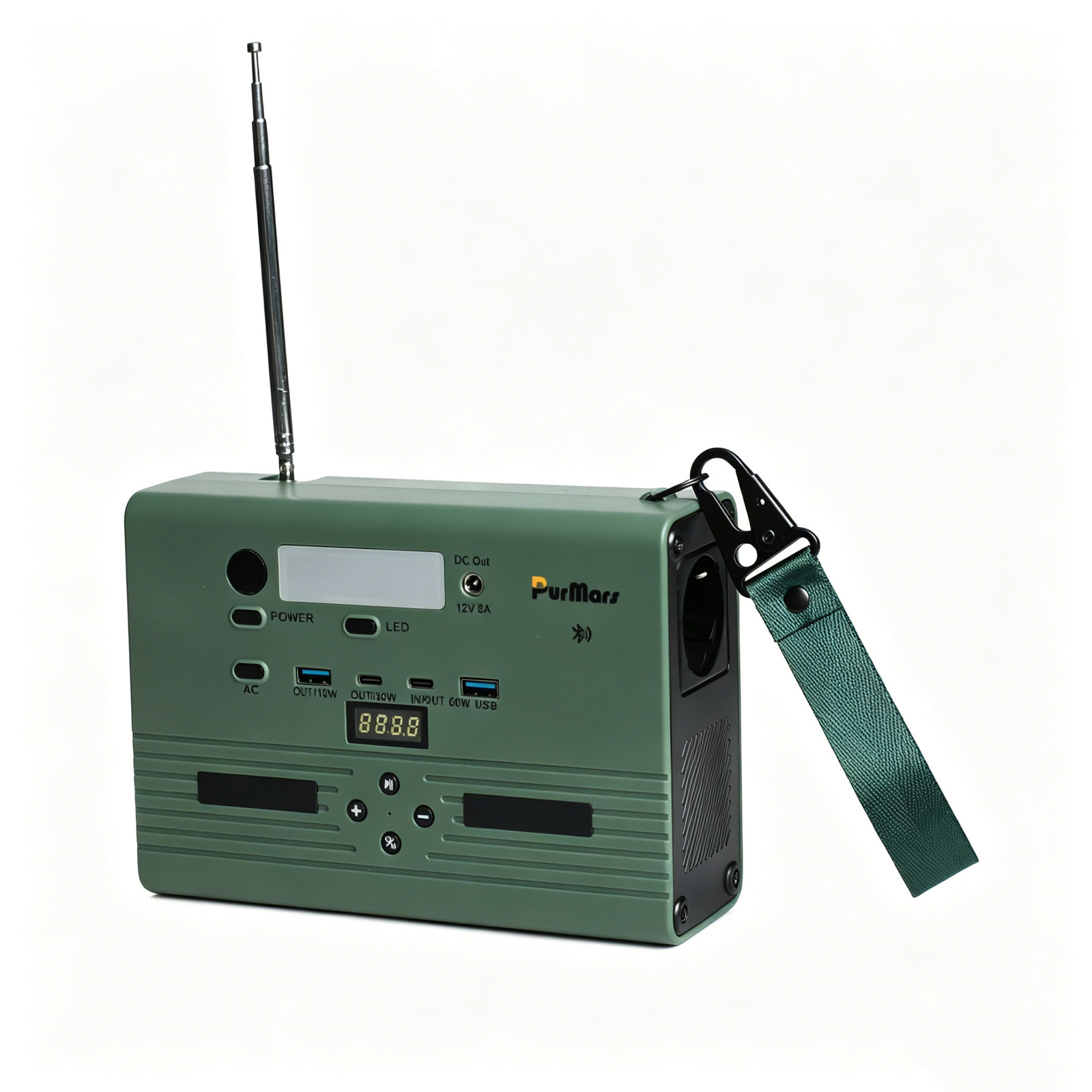

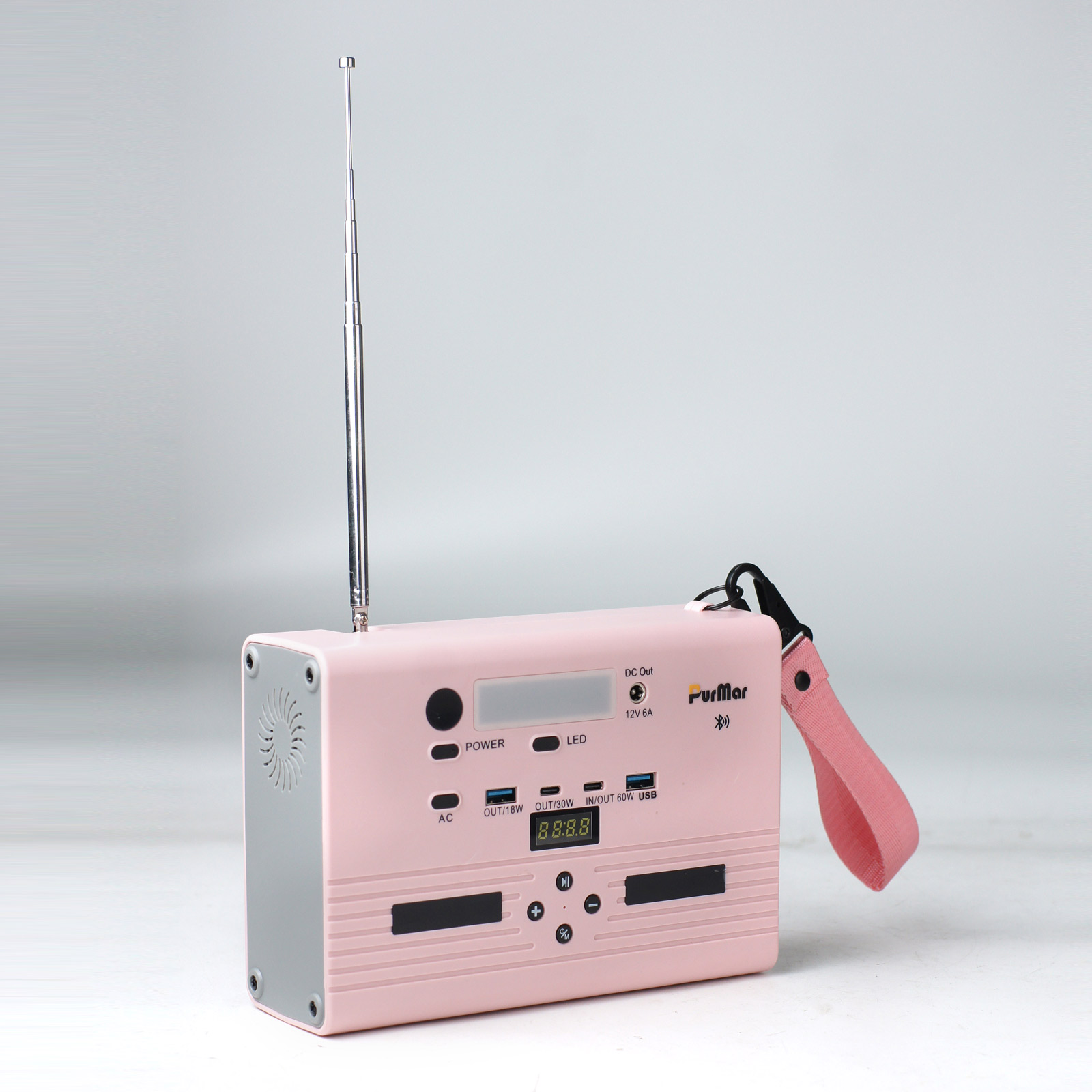

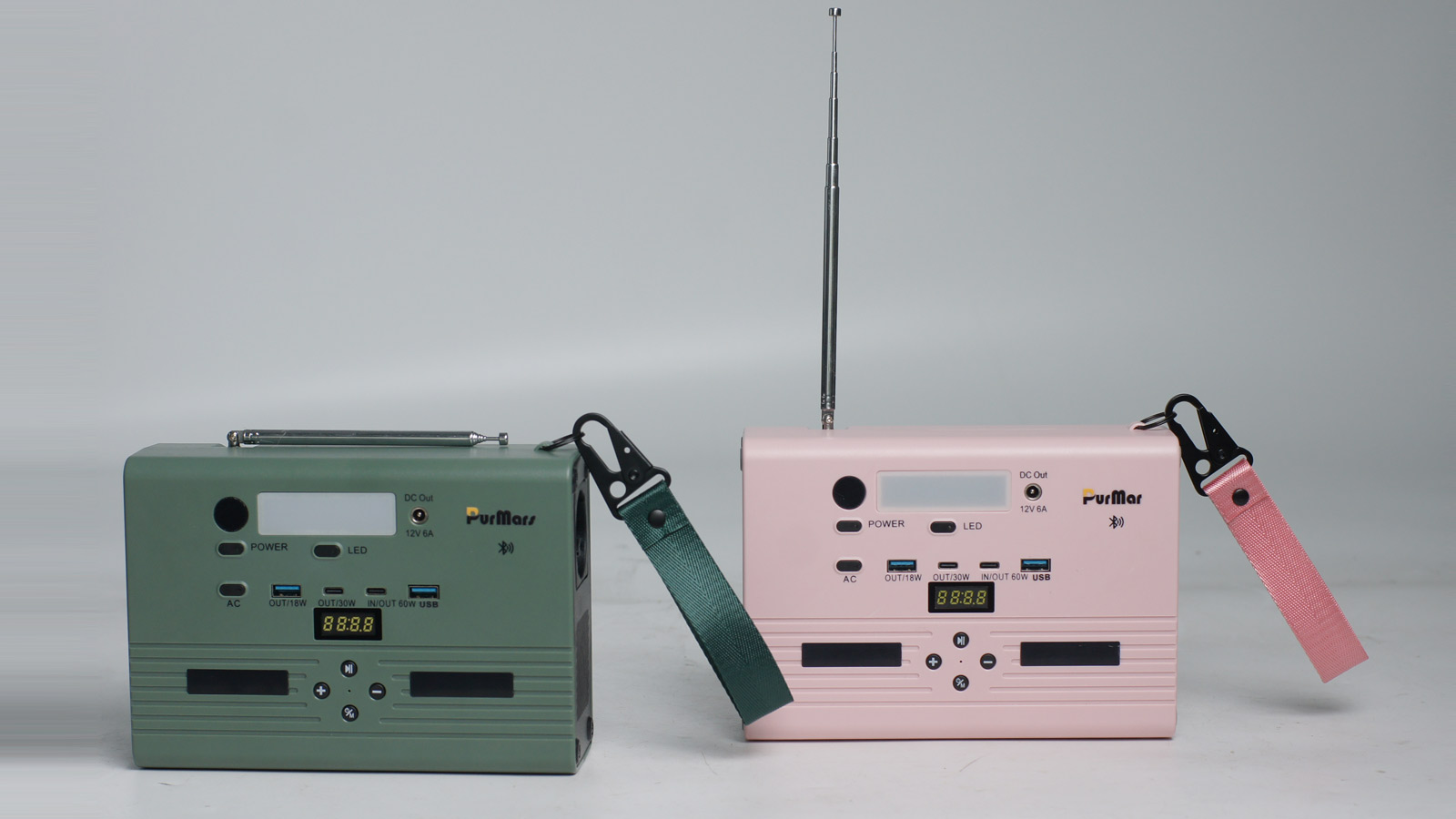

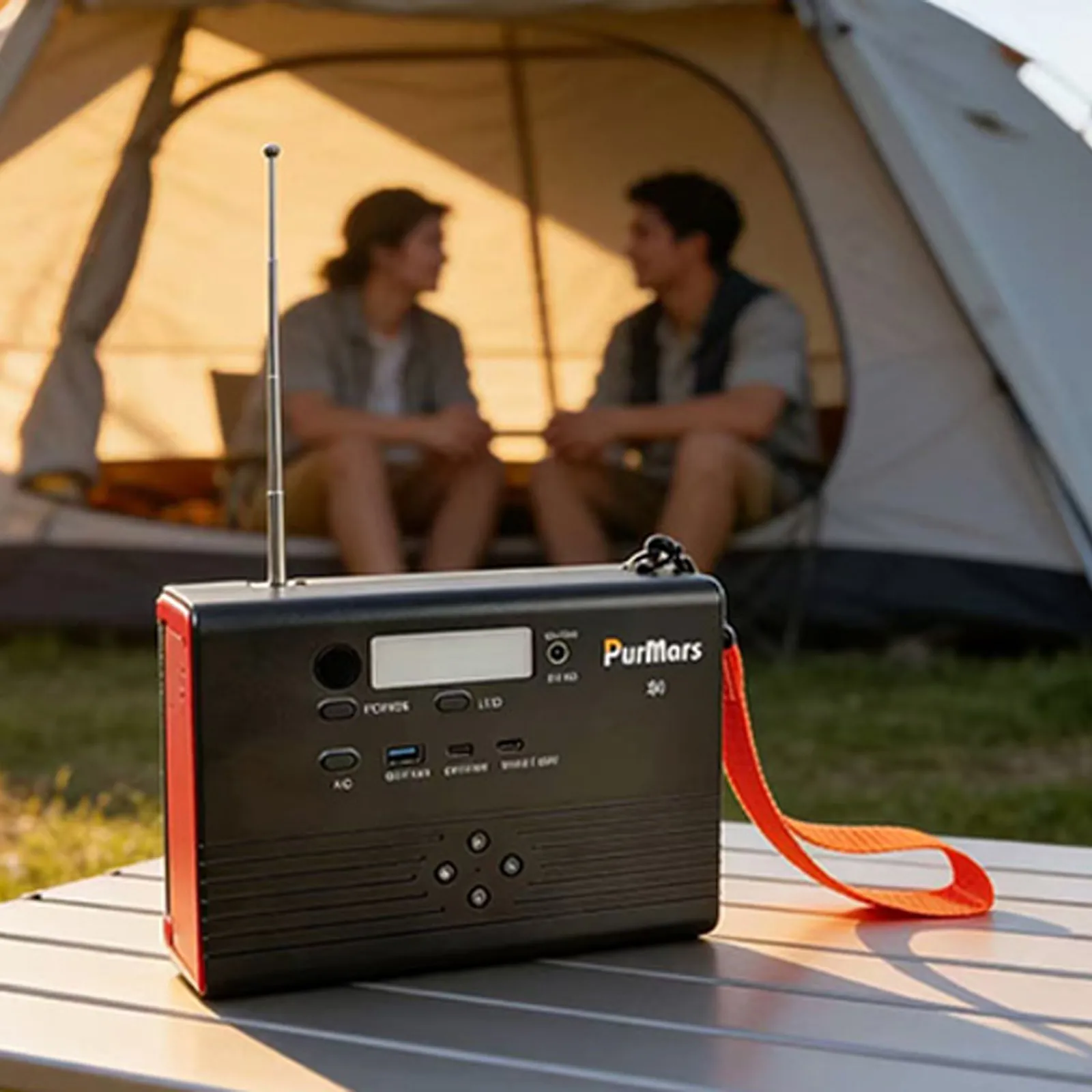

Outdoor camping energy storage power station P100A/E Plus|100W|with Bluetooth speaker|FM Radio

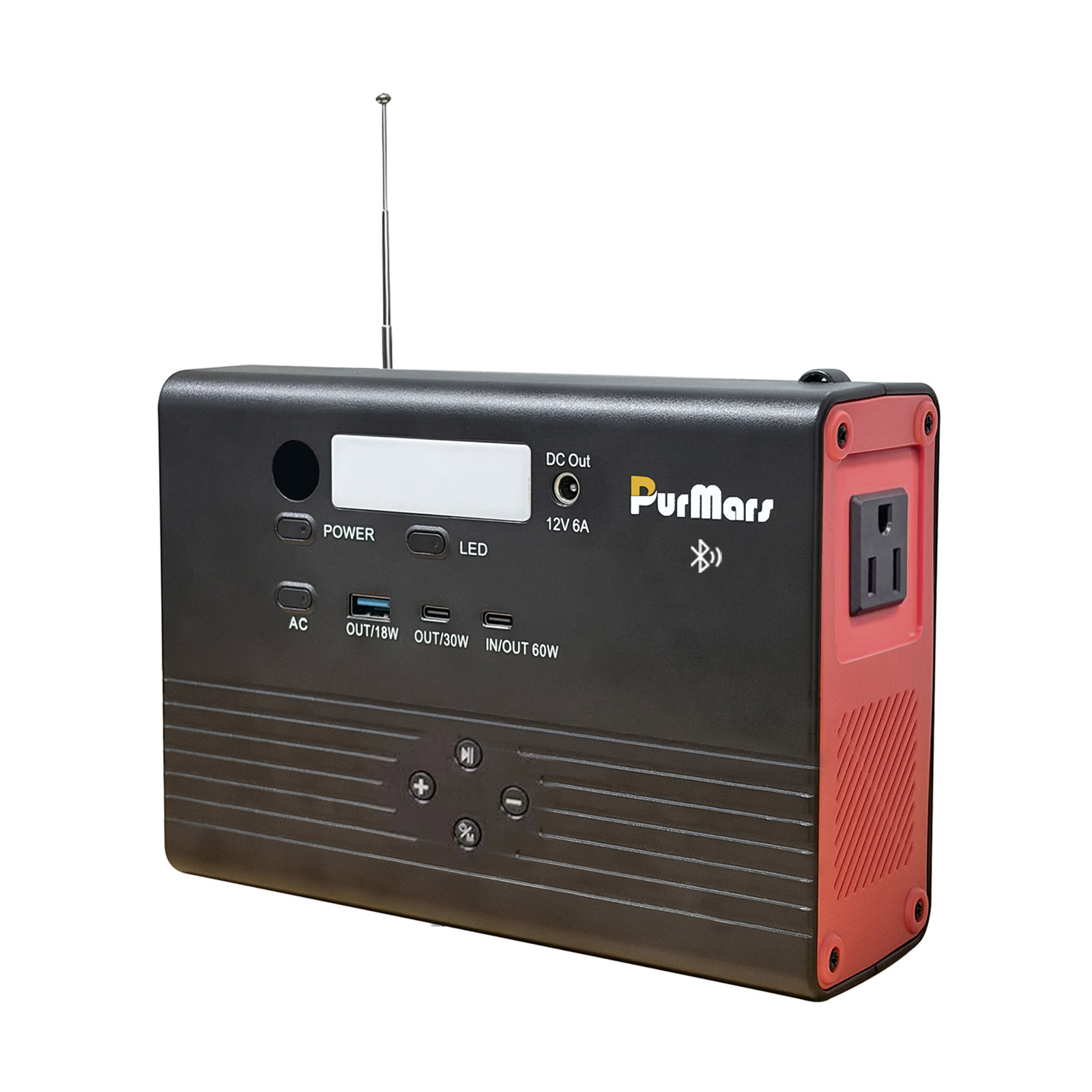

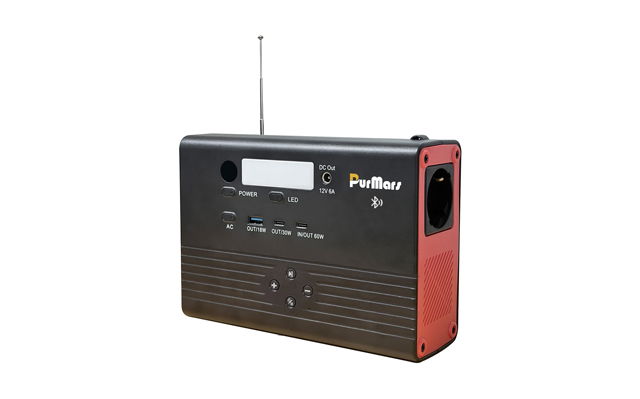

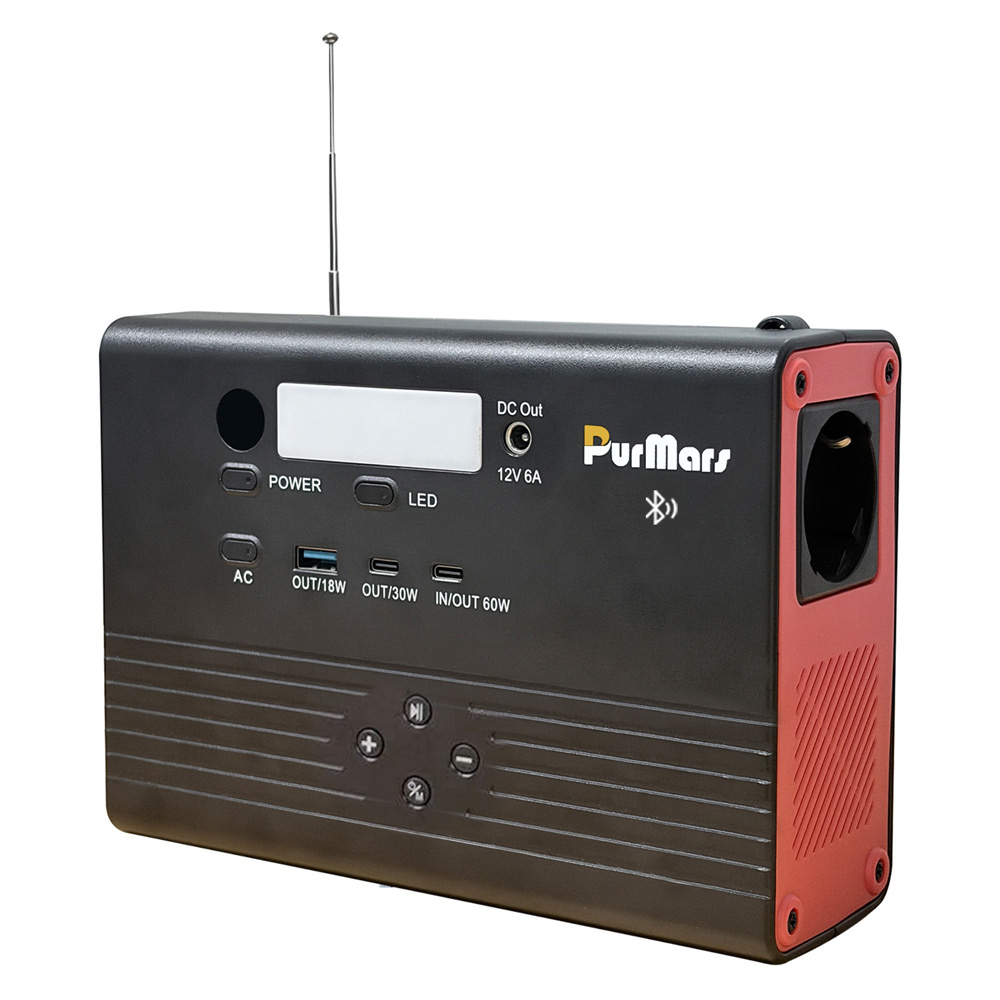

Button Operation

  POWER

Long press the Power button to switch on and off, the screen full display self-test and then display the current power percentage. If there is no output, it will switch off automatically in 1 minute.

  LED

Long press the LED button to turn on/off the LED lighting. Short press to adjust the brightness(20%-50%-90%-20% and so on); During the time the LED is on, it will not automatically turn off the light and shut down, you need to turn it off manually.

  AC

Switch on the AC output, the fan turns for 3 seconds and then stops. No load 8 hours automatic shutdown (under the premise of other functions turned off).

  Bluetooth Speaker Button

Press and hold for 3 seconds to power on/off, easily controlled with a single button. Short press to freely switch between FM radio and Bluetooth music modes, enjoying a diverse world of audio.

  Connecting Bluetooth Audio

Long press to turn on the Bluetooth audio, the blue indicator light will quickly flash into the pairing mode, in the device's Bluetooth device list, find the name of the Bluetooth audio (D05) click on the name of the Bluetooth audio to connect, after the connection is successful, the blue indicator light will turn into a normal light.

  Auto Shutdown Settings

USB, DC and other no load 5 minutes automatic shutdown. AC no load 8 hours automatic shutdown.

Recharging Ways

AC Charging

Choose a standard charging cable and connect the corresponding connectors to USB-C1 on this product. Before using the product for the first time,please fully charge it.

Note: To improve charging efficiency,it is recommended to use a PD60W or higher charger and cable.

Car USB Port Charging

Directly connect the car USB port with the data cable to charge this product (USB-C1 port)

Note: Some car USB ports have lower current and slower charging speed.

Solar Panel Charging

Users can charge this product by connecting a 60W solar panel (USB-C1 port).

Note: Solar panel is not included and needs to be purchased separately.

Package List

Power Station

Quantity: 1

USB Charging Cable

Quantity: 1

User Manual

Quantity: 1

Warnings and Precautions

Before using this product, please comply with the basic specifications, including:

1. Please read all instructions carefully before using.

2. To reduce the risk of injury, close monitoring is required when using this product near children.

3. Using accessories recommended or sold by non-specialist product manufacturers may result in the risk of electric shock.

4. Please pull the power plug out of the socket when the product is not in use.

5. It is forbidden to disassemble the product which may cause unpredictable risks such as fire, explosion or electric shock.

6. It is forbidden to use this product with damaged wires or plugs, or damaged output cables, which may cause risk of electric shock.

7. Please ensure proper ventilation while in charging. Do not restrict the ventilation of the product in any way.

8. Please place the product in a dry and well ventilated place to avoid rain.Product immersed water may cause risk of electric shock.

9. It is forbidden to place the product near heat sources, which may lead to safety accidents such as fire and explosion.

10. It is forbidden to operate or place the product in high temperature(under direct sunlight or inside the car with high temperature),otherwise it may cause risks such as internal battery overheating, fire, malfunction or battery life shortened.

11. It is recommended to recharge the product every three months to prevent low power when in use.

FAQS

Warranty and Contacts

It is guaranteed to the user that in the case of normal use, the product will not have defects in the process and materials that affect the use of the product. This warranty statement sets forth the full and exclusive warranty obligations of the product, and our company will not assign or authorize any third party to assume any responsibility for the products we sell.

  Warranty Period

The warranty period of our product includes 12 months Free warranty and 12 months extended warranty.The warranty period is effective from the date of purchase by the users. In order to protect your warranty rights, please keep the purchase certificate properly.

Warranty do not apply to:

1. The appearance of the product is damaged after use.

2. Users disassemble or repair the products on their own.

3. Any damage caused by users' intentional behaviors.

4. Any damage caused by force majeure, such as natural disasters, lightning or other accidents.
